01New Delhi ResidenceNew Delhi, IndiaPrivate residence — architecture & interior

02Panchkula ResidencePanchkula, Chandigarh, IndiaResidential — architecture & interior

03Facade Detail & 3DNew Delhi, IndiaFacade study — elevation, detail & visualisation

04A Private ResidenceNew Delhi, IndiaRenovation — interior architecture

01Project

New Delhi Residence

Location: New Delhi, India
Typology: Private residence — architecture & interior
Role: Architectural & interior design, working drawings
Context: HIS Interior & Construction Enterprises

A house worked from the brick outward: facade, courtyard, foyer, drawing room, kitchen, bathroom.

The concept was inspired by boho architecture and style — layered textures, vintage pieces and natural finishes, combining colours, objects and patterns from many areas of the world.

renderFront facade

Facade

The building faces a real brick texture. On the facade and courtyard wall a fixed glass window system is used, with a wooden main door.

Courtyard of the New Delhi residence looking back toward the covered verandah, brick boundary wall and lawn. — Courtyard

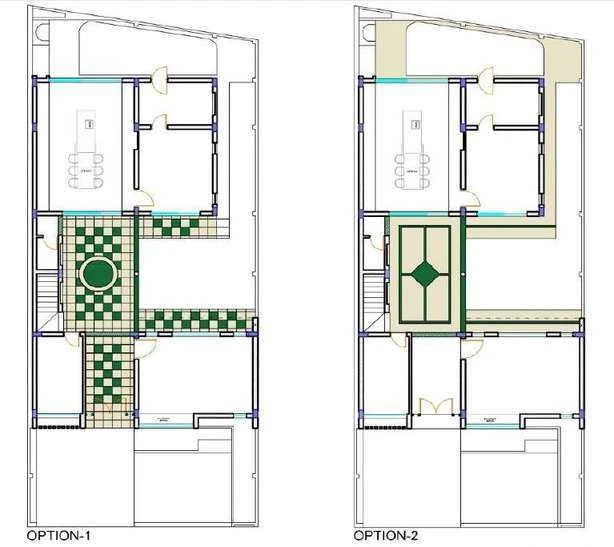

Two alternative ground floor plans for the residence, Option 1 and Option 2, showing the courtyard and patterned floor inlay. — Floor plan — options 1 & 2

Foyer

Wainscoting, picture frame and chair rail — drawn as an elevation with its moulding profiles, then built.

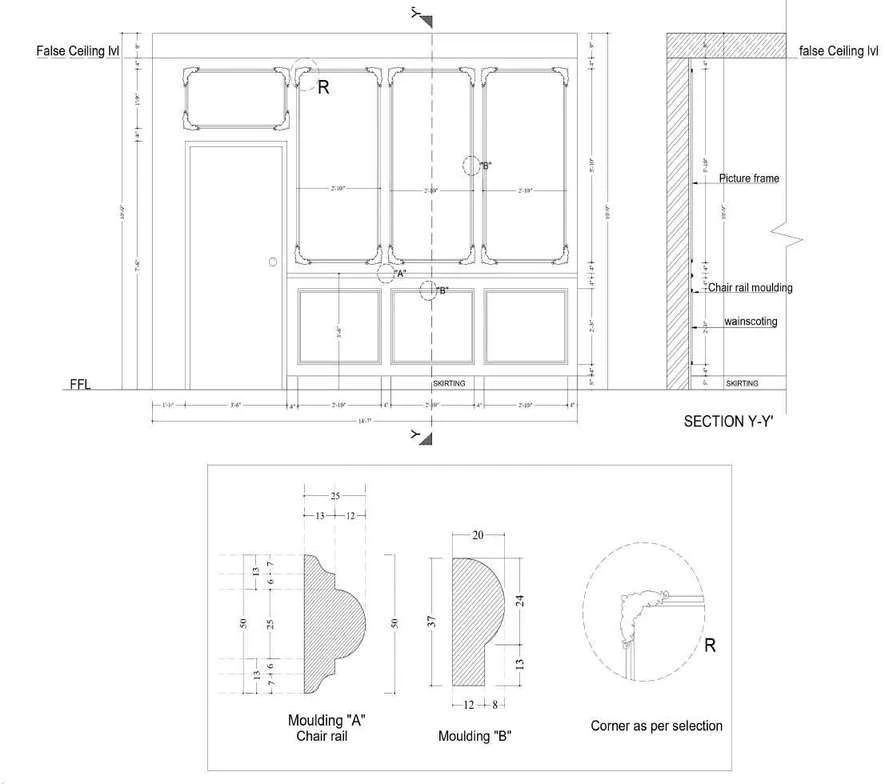

Foyer wall elevation with section Y-Y, and enlarged profiles for moulding A, moulding B and the corner selection. — Foyer wall — elevation, section & moulding detail

Foyer interior view: exposed brick side wall, panelled white walls and patterned marble floor running toward a glazed opening. — Foyer, 3D view

Plan → detail → built

The foyer, resolved three times: as a floor pattern, as a dimensioned elevation, and as the space itself.

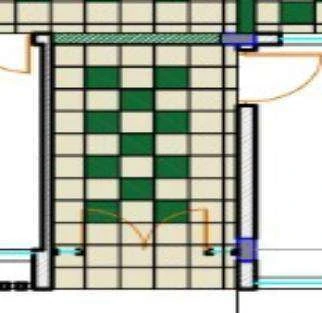

Foyer floor plan with checkerboard marble inlay.

Foyer wall elevation and moulding profiles.

0101 — Floor plan

Drawing room

Fireplace, bay window, wooden log ceiling and slant roof — drawn and rendered against each other.

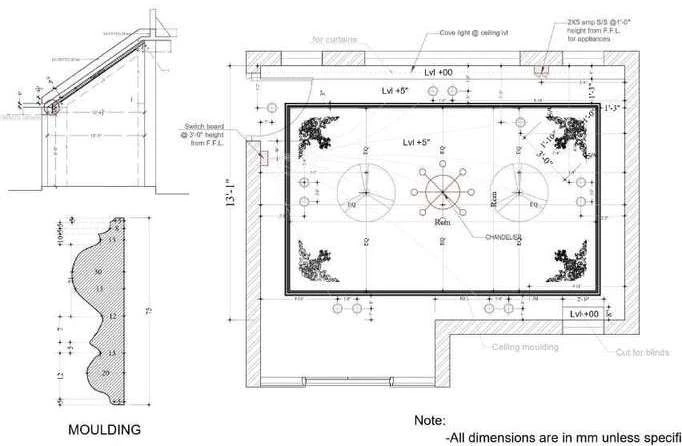

Floor & ceiling plan

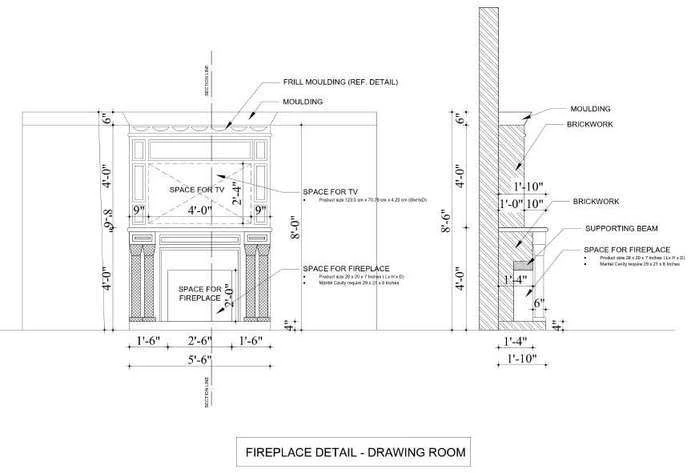

Fireplace detail elevation for the drawing room, dimensioned, with the space for the TV and fireplace called out against brickwork. — Fireplace elevation

Rendered drawing room with fireplace, bay window, wooden flooring and wainscoting moulding. — Fireplace & bay window

Ceiling elements: exposed wooden log beams under a slant roof with a pale green soffit. — Ceiling elements & slant roof

Kitchen, bath & rooms

Forest green vanities, a wooden island, green marble for the dining top; blue-and-white tile in the bathrooms.

Kitchen with forest green vanities, a wooden island with drawers and a green marble worktop opening to the garden. — Kitchen

Dining area with open wooden shelving, a marble-topped table and pendant lighting. — Dining

Bathroom with blue and white patterned wall tile, an octagonal black and white marble floor and a freestanding vanity. — Toilet — materials & textures

Second bathroom view showing the tiled dado, arched window and mirrored vanity. — Toilet, second view

Bedroom with canopy drapes, arched windows, a green upholstered bed and a walnut dresser. — Bedroom

Study room lined floor to ceiling in dark wood shelving around a large framed landscape painting. — Study room

02Project

Panchkula Residence

Location: Panchkula, Chandigarh, India
Typology: Residential — architecture & interior
Role: Architecture, interior detail, working drawings
Context: HIS Interior & Construction Enterprises

Three storeys planned, then detailed down to the skirting: panelling build-ups, partitions, staircase sections.

A residential project for Panchkula at Chandigarh — architecture and interior design, inspired by modern architecture.

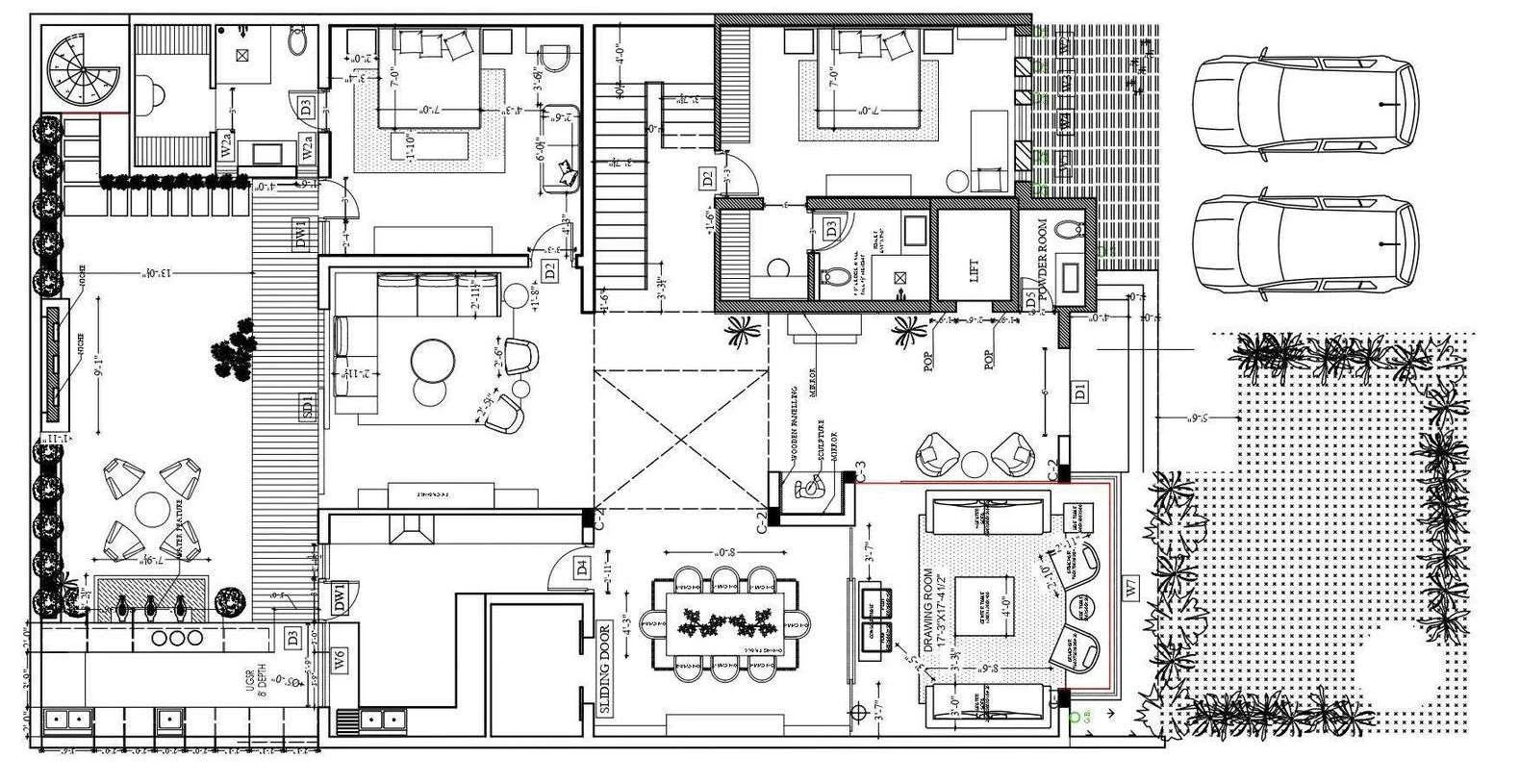

Ground floor plan of the Panchkula residence: landscaped forecourt with car ports, entrance foyer, living and dining spaces, and a planted rear garden.

drawingGround floor plan

The stack

Ground, first and second floors.

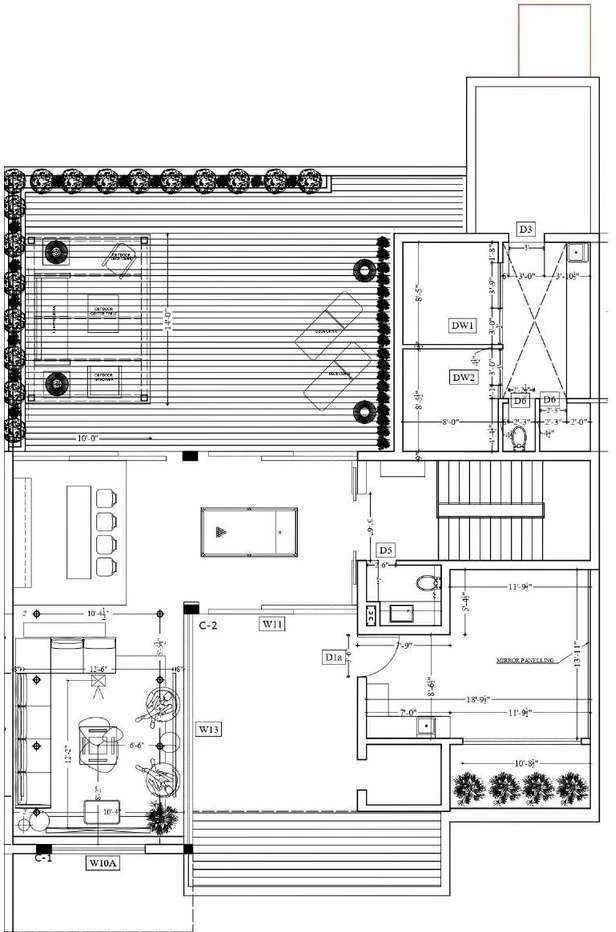

Second floor plan of the Panchkula residence with a terrace and roof-level accommodation. — Second floor plan

Bedroom

Bed back wall, TV wall, wardrobe shutters — each drawn as elevation, plan and detail before anything was cut.

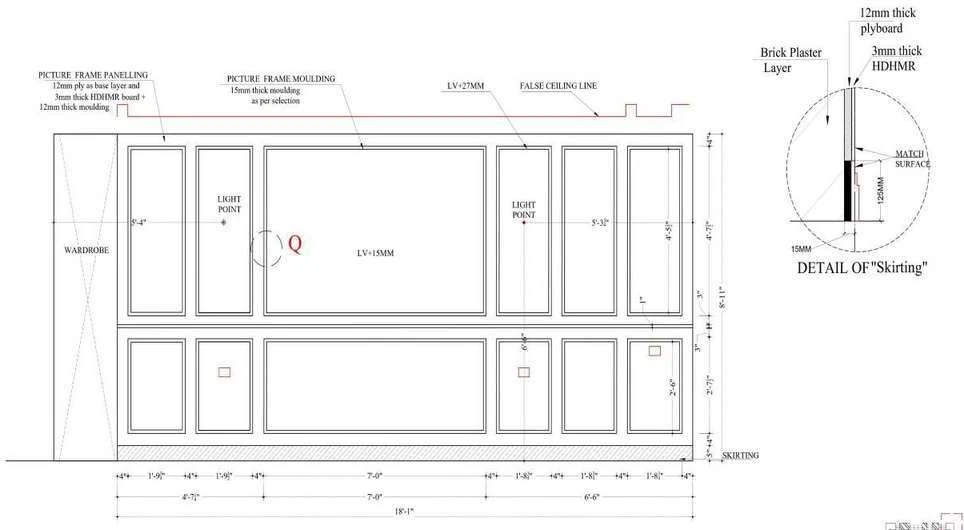

Bed back wall elevation with picture-frame panelling, brick plaster layer, plywood board build-up and a skirting detail. — Bed back wall detail

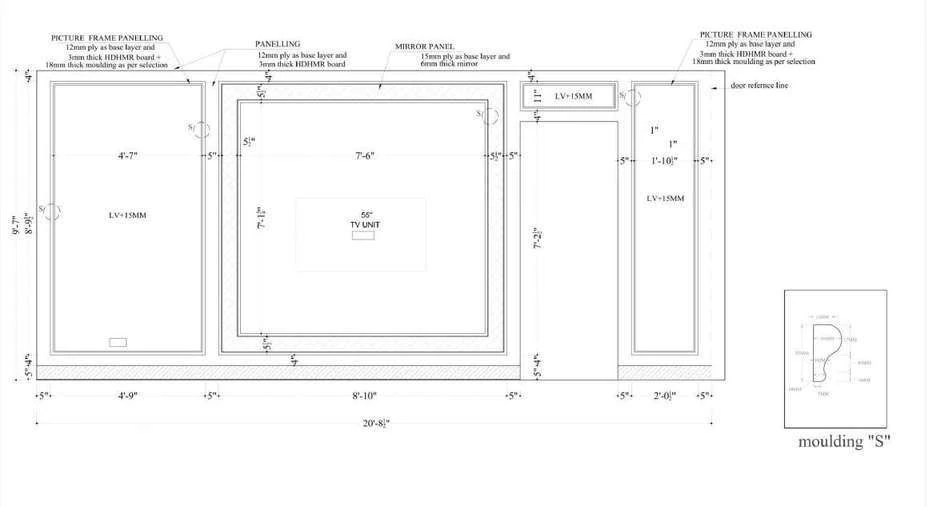

Bedroom wall panelling detail with picture frame panelling and moulding S, fully dimensioned. — Panelling detail

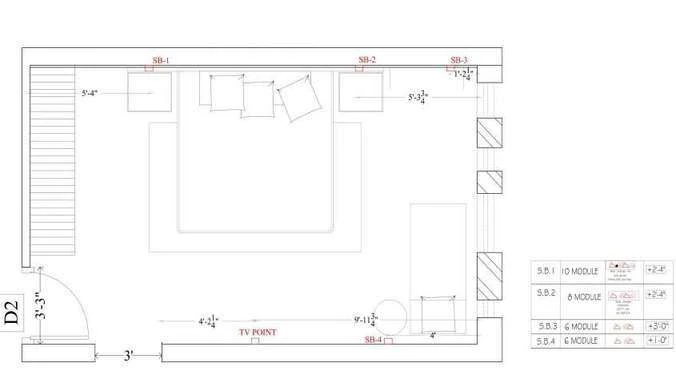

TV wall detail: elevation with module schedule and a plan showing the seating arrangement. — TV wall detail

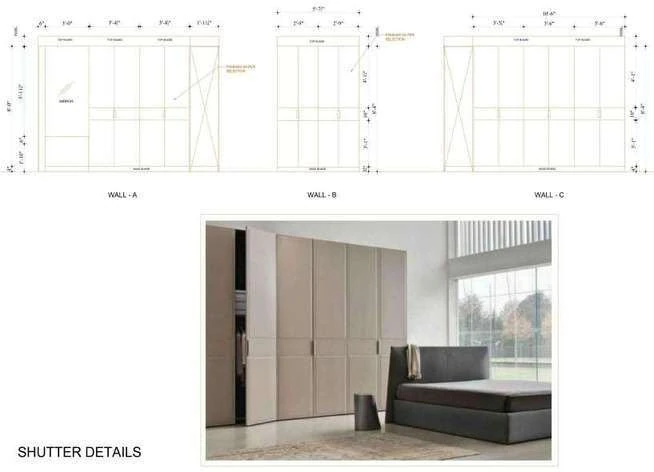

Wardrobe shutter elevations for walls A, B and C with a rendered view of the finished wardrobe run. — Wardrobe shutters & details

Foyer — plan to detail

One wall, drawn at three scales. Scroll to walk down through them.

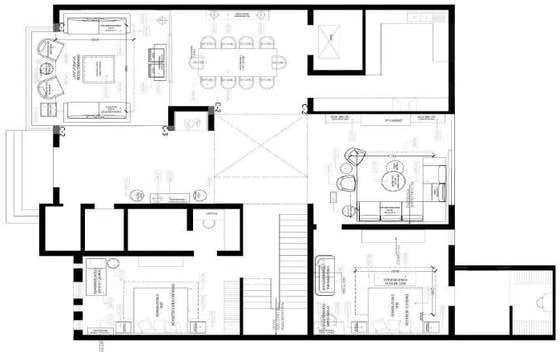

Ground floor key plan with the foyer picked out in solid tone.

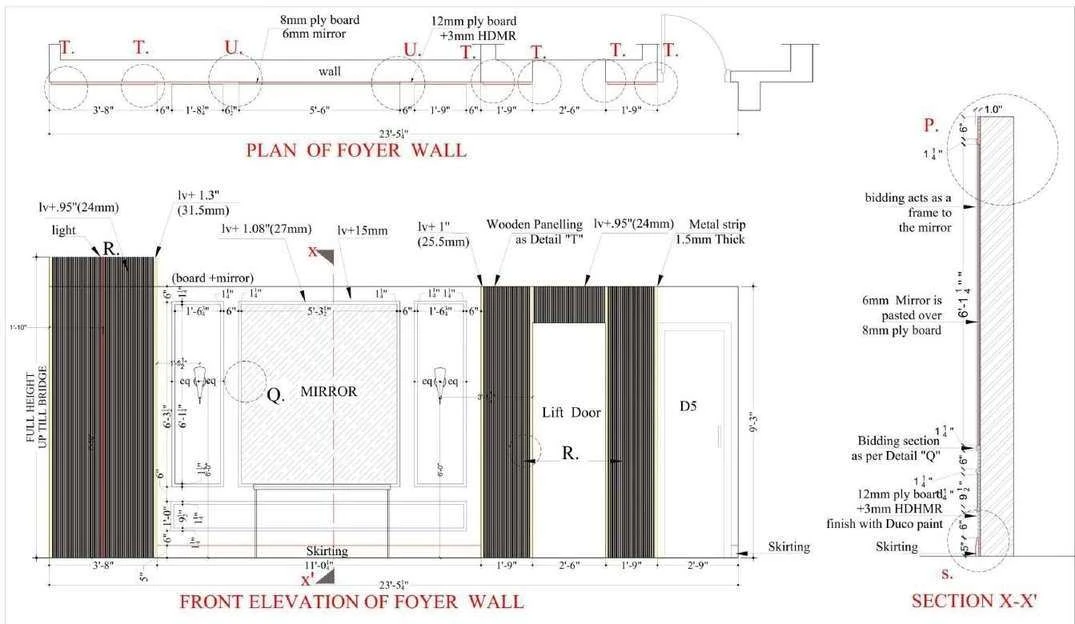

Front elevation of the foyer wall with mirror, lift door and wooden panelling, plus section X-X.

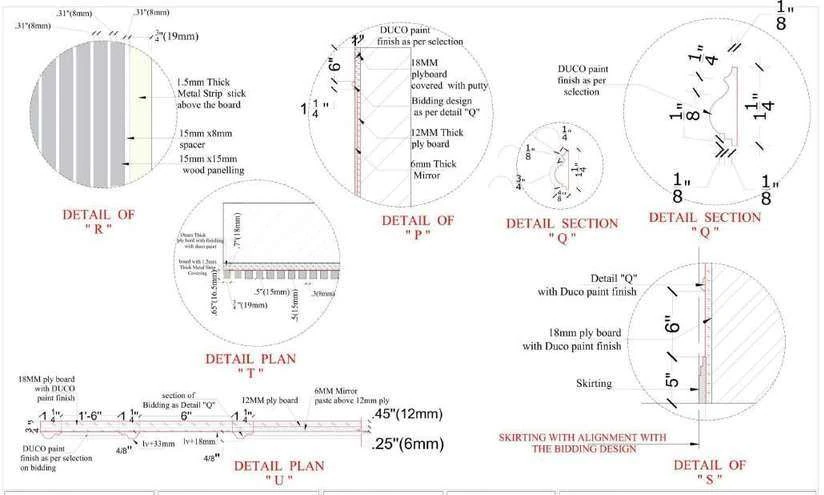

Enlarged foyer wall details R, P, T, Q, U and S: 18 mm ply board with Duco paint finish, 5 mm thick mirror, 12 mm wood panelling and skirting alignment.

0101 — Key plan, foyer located

Rendered

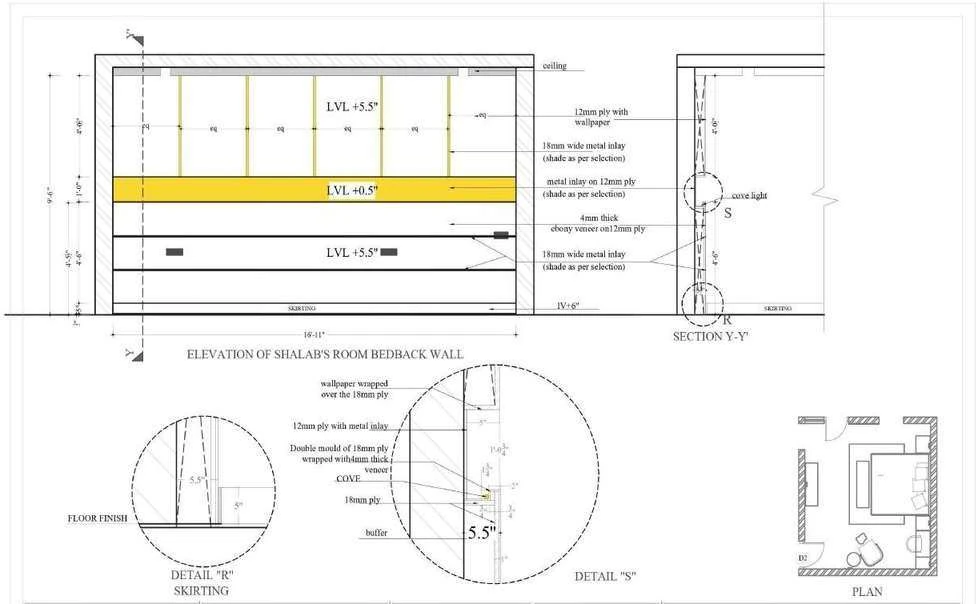

Elevation of the master bedroom bed back wall with level markers, cove light detail and skirting detail sections. — Bed back & TV wall elevation

Partitions & stair

Wooden and metal partitions; the staircase drawn in plan, section and detail.

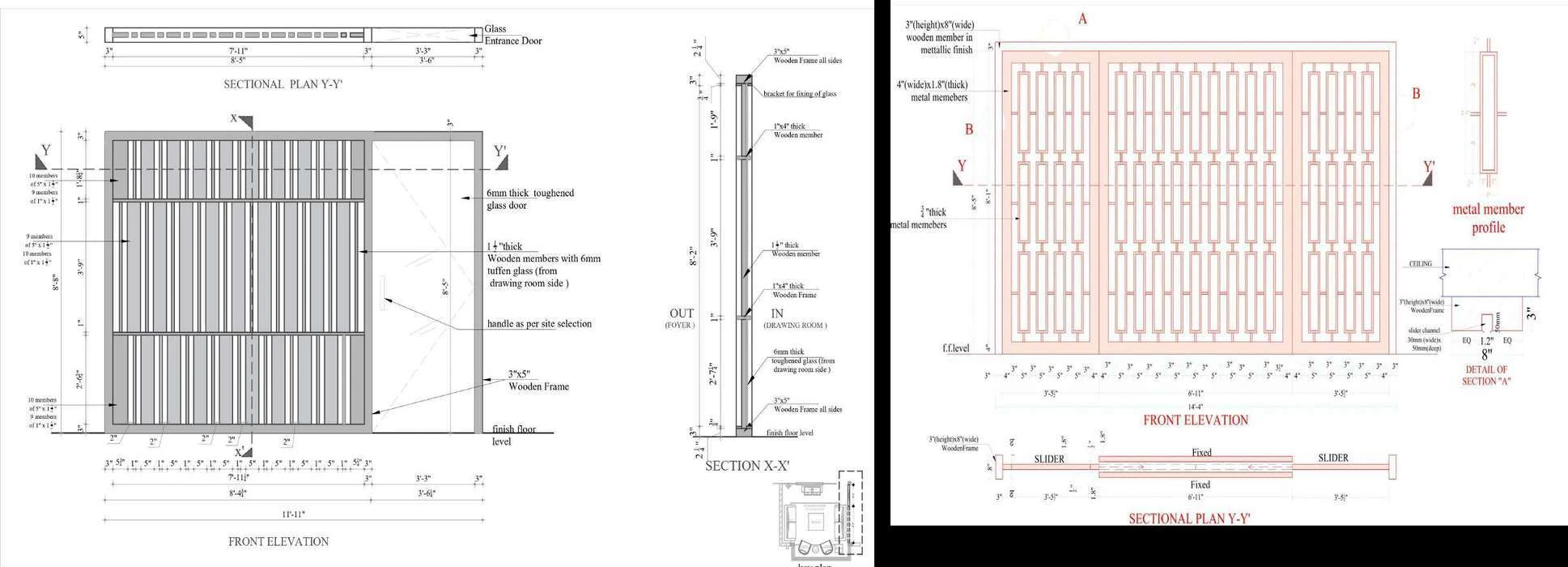

Wooden partition detail and metal partition detail side by side: sectional plans, front elevations and sections with member profiles. — Wooden & metal partition details

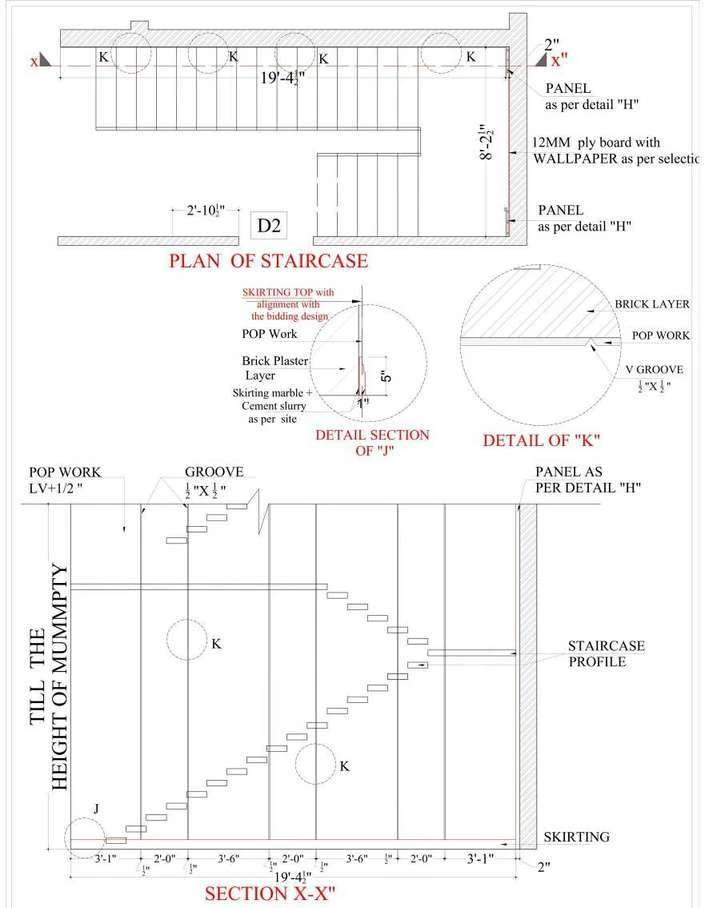

Plan of staircase with section X-X, panel and groove details and a wall panel build-up. — Staircase plan & section X-X

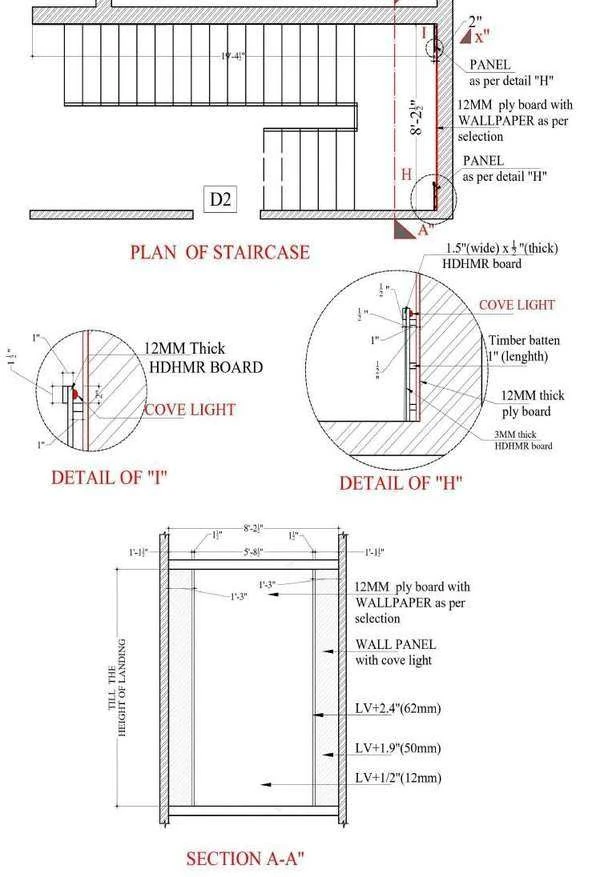

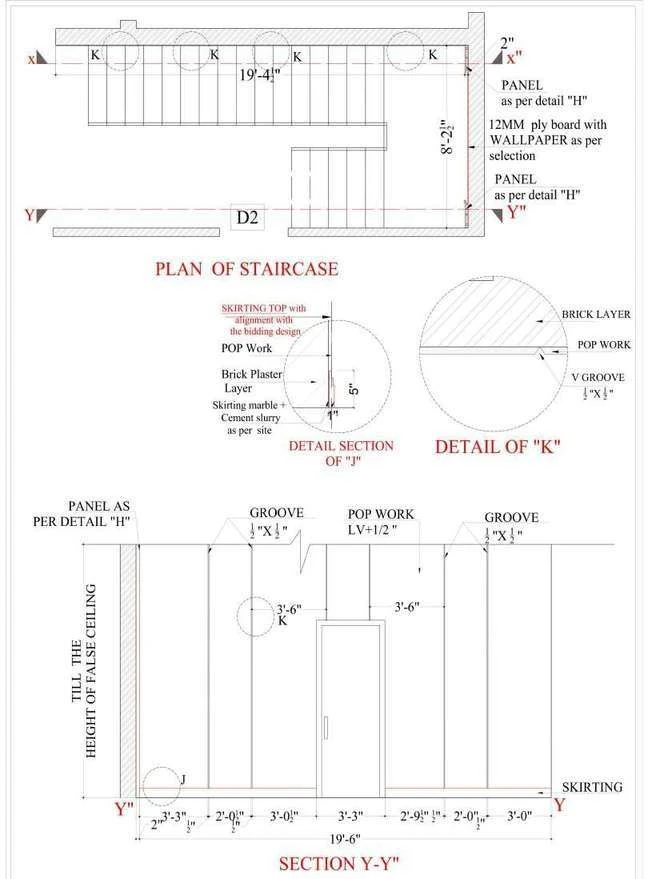

Staircase plan with section A-A, cove light detail and HDHMR board panel construction. — Staircase section A-A

Staircase detail

Build-up

1.5 mm metal strip over 12 mm plywood, 3 mm HDHMR as second layer — the drawings name every millimetre.

Room furniture layout keyed A to D to the surrounding wall elevations. — Layout & wall keys

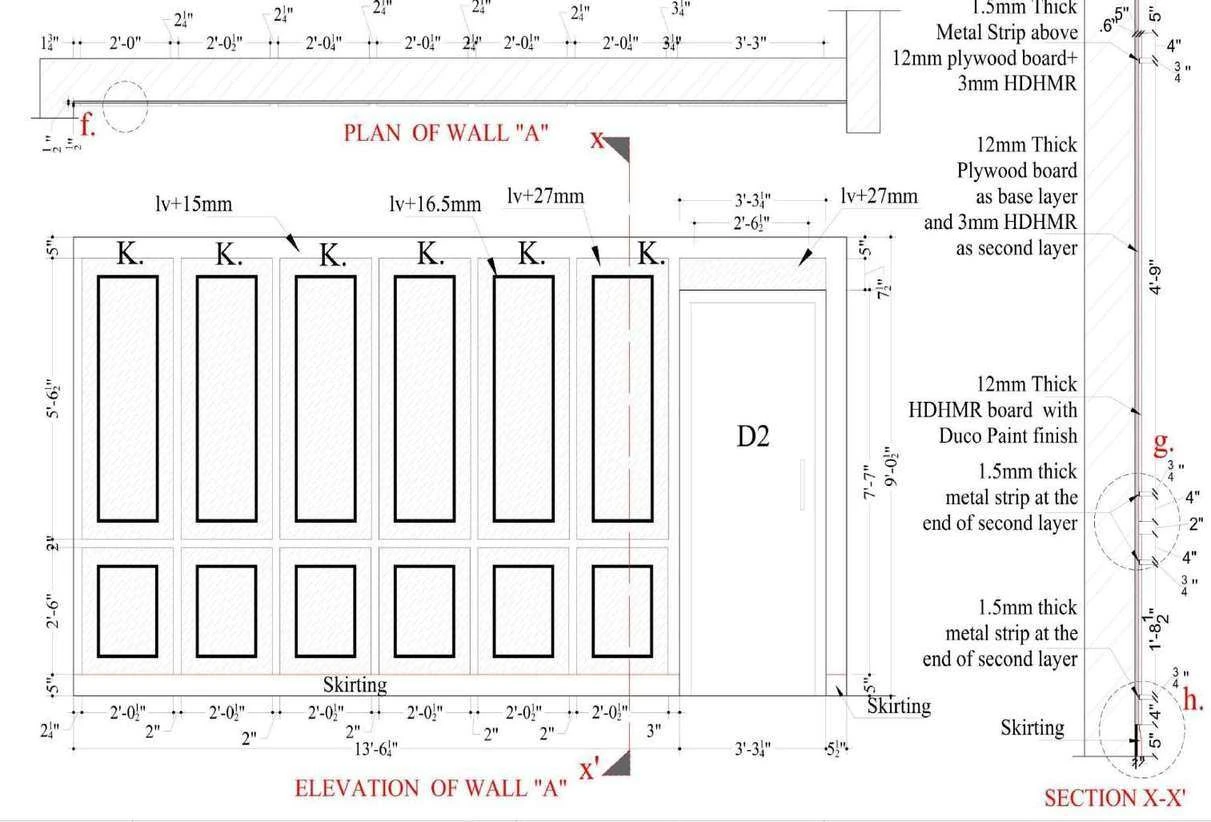

Plan and elevation of Wall A with a full material build-up: 1.5 mm metal strip above 12 mm plywood board as base layer and 3 mm HDHMR as second layer, with section X-X. — Wall A — plan, elevation, section

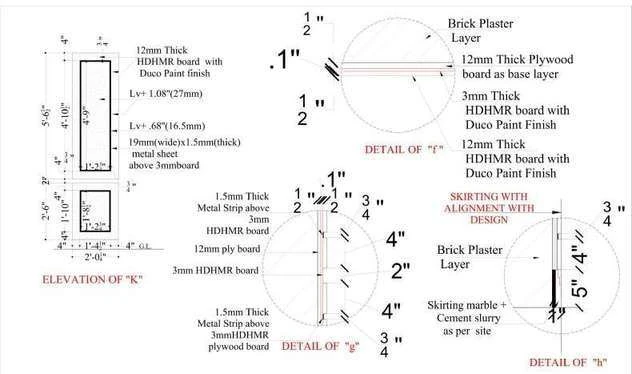

Skirting and panel junction details showing brick plaster layer, HDHMR board with Duco paint finish and skirting marble in cement slurry. — Skirting & junction details

03Project

Facade Detail & 3D

Location: New Delhi, India
Typology: Facade study — elevation, detail & visualisation
Role: Facade detailing and 3D views
Context: HIS Interior & Construction Enterprises

An elevation, a legend of five materials, and four views of the same building in daylight.

The elevation carries its own key: wooden ACP sheet, white paint, ACP as per selection, texture as per selection, MS members. Every face on the render can be traced back to a letter on the drawing.

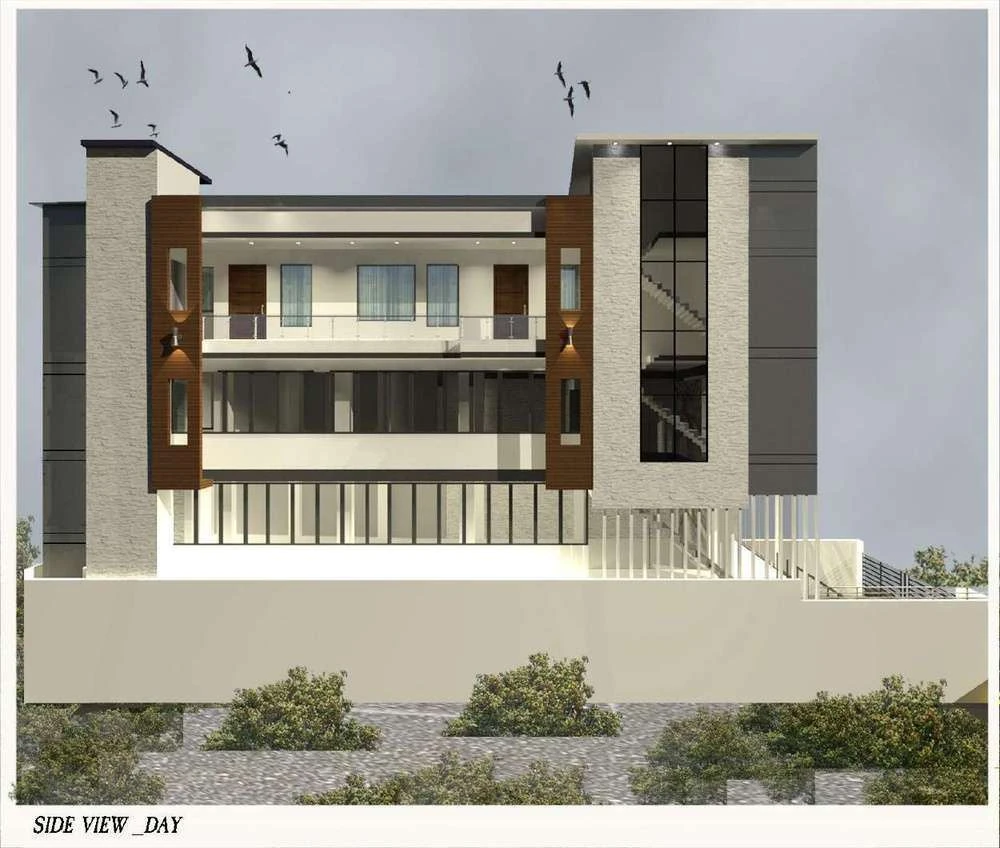

Side view of the facade in daylight: stone-clad piers, wood-effect ACP panels and deep recessed glazing across four storeys.

renderSide view — day

Elevation & legend

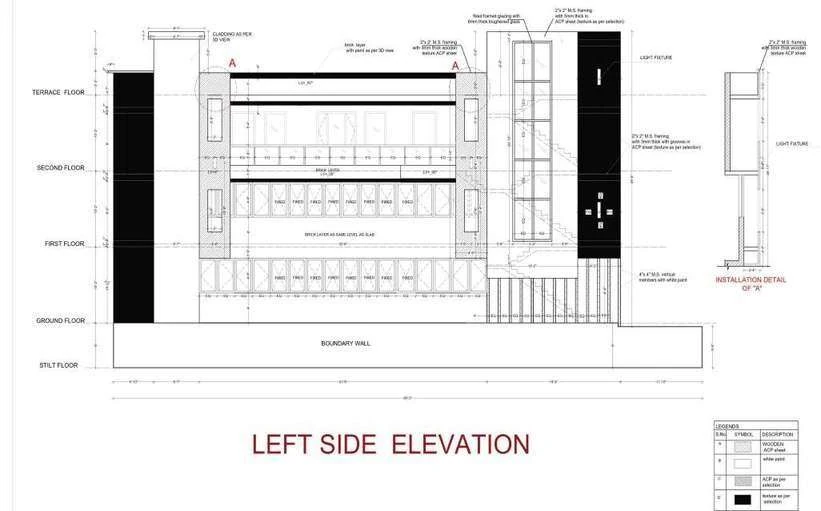

Left side elevation of the building with terrace, second, first and ground floor levels marked and an installation detail. — Left side elevation

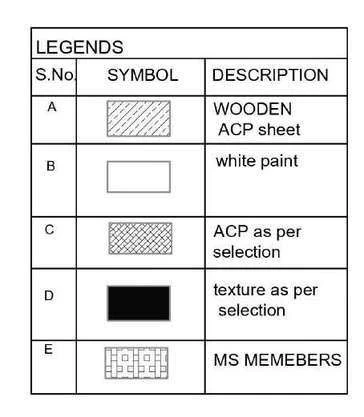

Legend table listing symbols A to E: wooden ACP sheet, white paint, ACP as per selection, texture as per selection and MS members. — Material legend

Built form

Front view of the facade in daylight with a stepped entrance plinth and stacked balconies. — Front view — day

Rear view of the building in daylight showing the grey panel field and terrace railing. — Rear view — day

Skin, resolved

From the whole elevation down to the framing that holds the panel on.

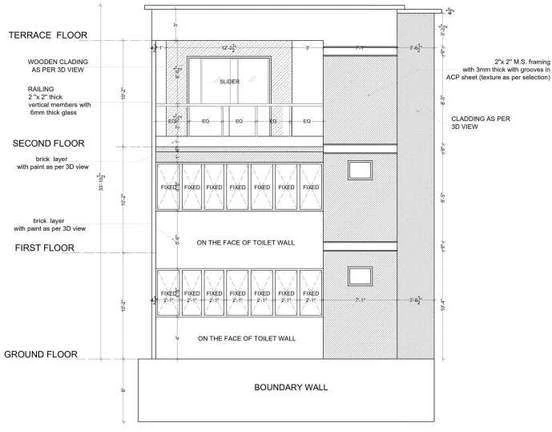

Facade detail drawing with terrace, second, first and ground floor levels and the boundary wall, noting cladding as per the 3D view.

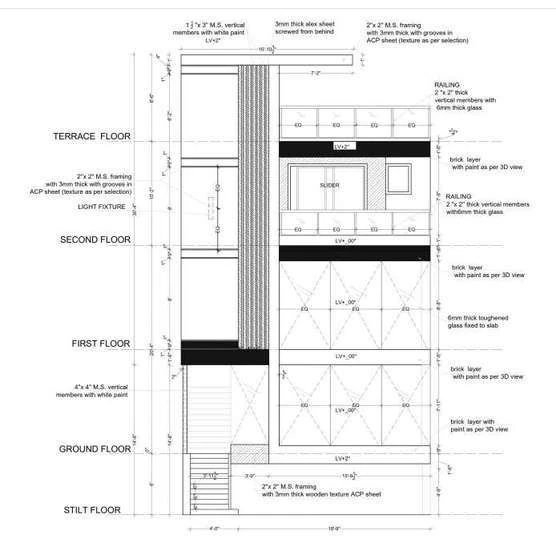

Cladding detail: 2 inch by 2 inch MS framing with 3 mm thick ACP sheet with grooves, railing and toughened glass.

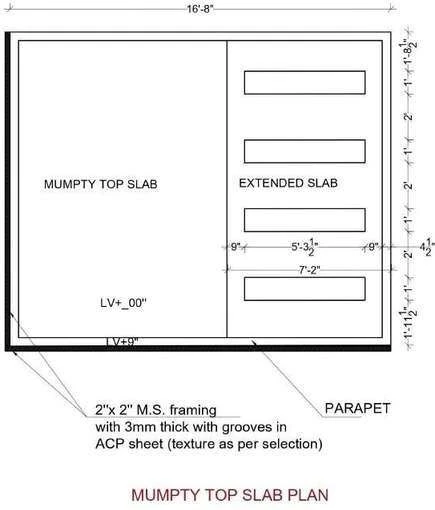

Mumty top slab plan with extended slab and parapet, framed in 2 inch by 2 inch MS with 3 mm ACP sheet.

0101 — Facade detail by level

04Project

A Private Residence

Location: New Delhi, India
Typology: Renovation — interior architecture
Role: Freelance: design through execution
Context: Independent commission

A renovation of selected rooms — foyer, living, dining, entertainment room, bar, master bedroom — followed onto site.

A freelance project where a few key areas in a house had to be renovated. The client wanted the living room to look formal, while the other areas were personalised to his and his family's taste — his own bedroom, the family entertainment room, the dining area and the bar.

Two views of the renovated living room: shades of neutral brown, grey, navy blue, tan and mint paired with brass accents around a low table.

renderLiving room

Foyer

A hunter green focal wall of 3D wall panels with diagonal lines, a sleek disk console and an oversized mirror.

View from the entrance foyer into the living room, the green panel wall in the foreground and the seating beyond. — Living room from the entrance foyer

Dining & seating

A minimal marble and wood table with upholstered chairs; a crockery cabinet with a full-length bevelled mirror doubles the visual volume.

Dining area with a marble and wood table under a brass chandelier, and a mid-landing casual seating area with wooden armchairs and painted porcelain pots. — Dining area & mid-landing seating

Entertainment room

A neutral scheme with living coral as the accent; in the bar, wood dominates the palette at the client's request, with backlit onyx marble either side.

Bar with a dark counter and red stools, backlit bottle display, and a rippled concentric wooden ceiling. — Bar

Seating corner of the entertainment room with green upholstered classical armchairs, a red table lamp and an oversized plant. — Seating area

Master bedroom

Warm neutral tones with excess wood; a reading corner with an armchair, foot-rest and floor lamp adds a second functional zone.

Execution

The same rooms, mid-build. Photographed on site.

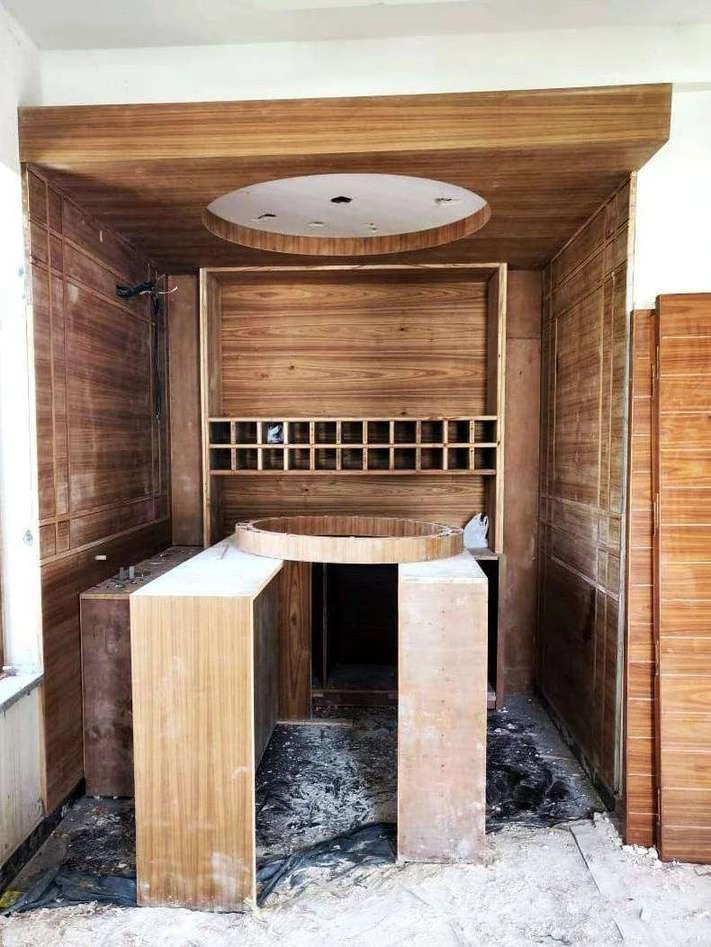

Site photograph of the bar under construction: timber panelling installed around the counter and the circular ceiling recess formed. — Execution — bar

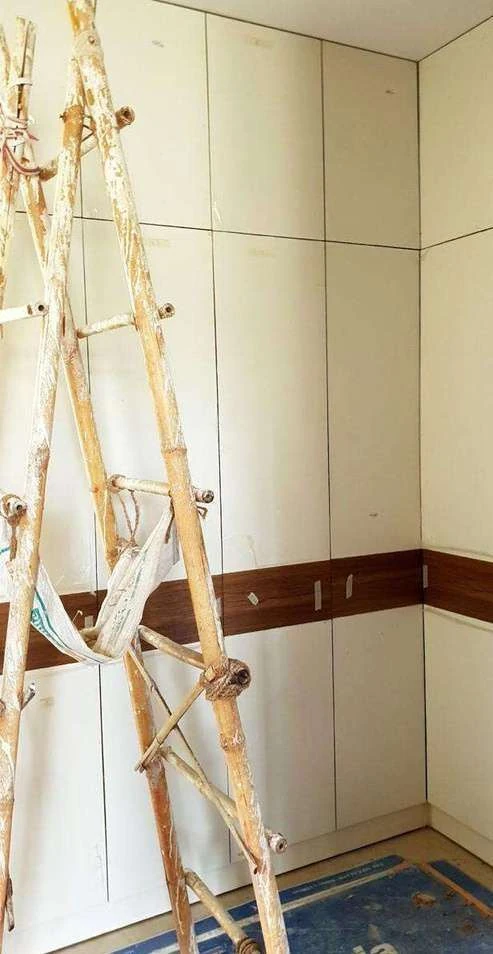

Site photograph of the walk-in closet with panelled doors installed and a bamboo ladder against the wall. — Execution — walk-in closet

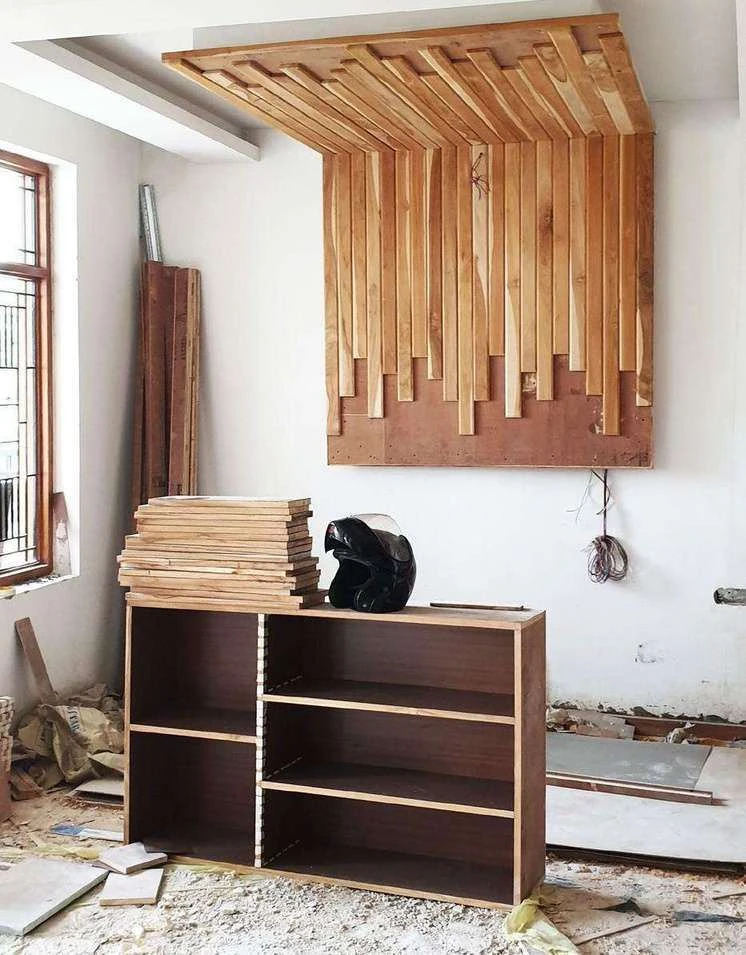

Site photograph of the bedroom console and slatted wooden wall panelling being installed. — Execution — bedroom console & panelling

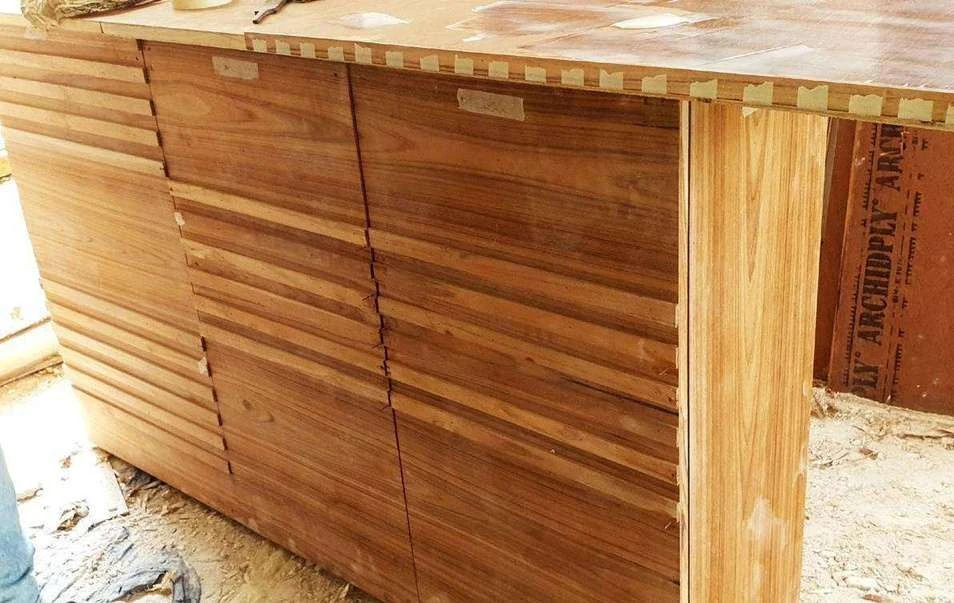

Site photograph of the bedroom console shutter design in timber, close up on the horizontal slat joinery. — Execution — console shutter design

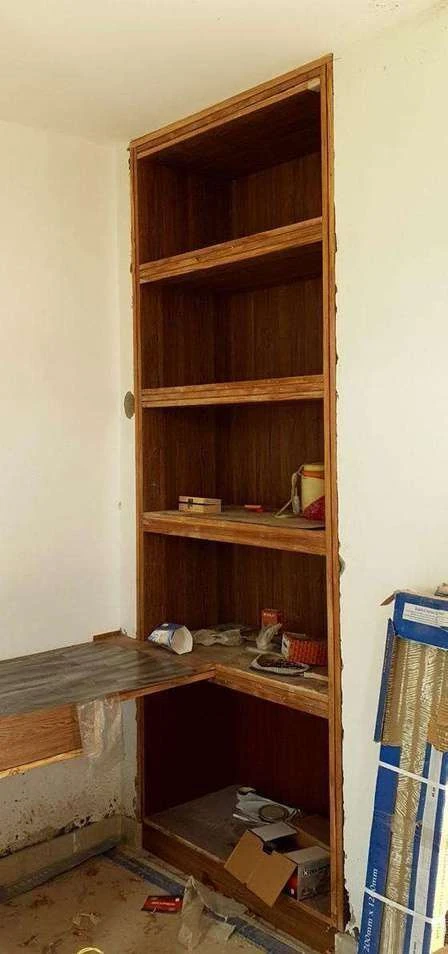

Site photograph of the bedroom bookshelf carcass built into the corner recess. — Execution — bookshelf

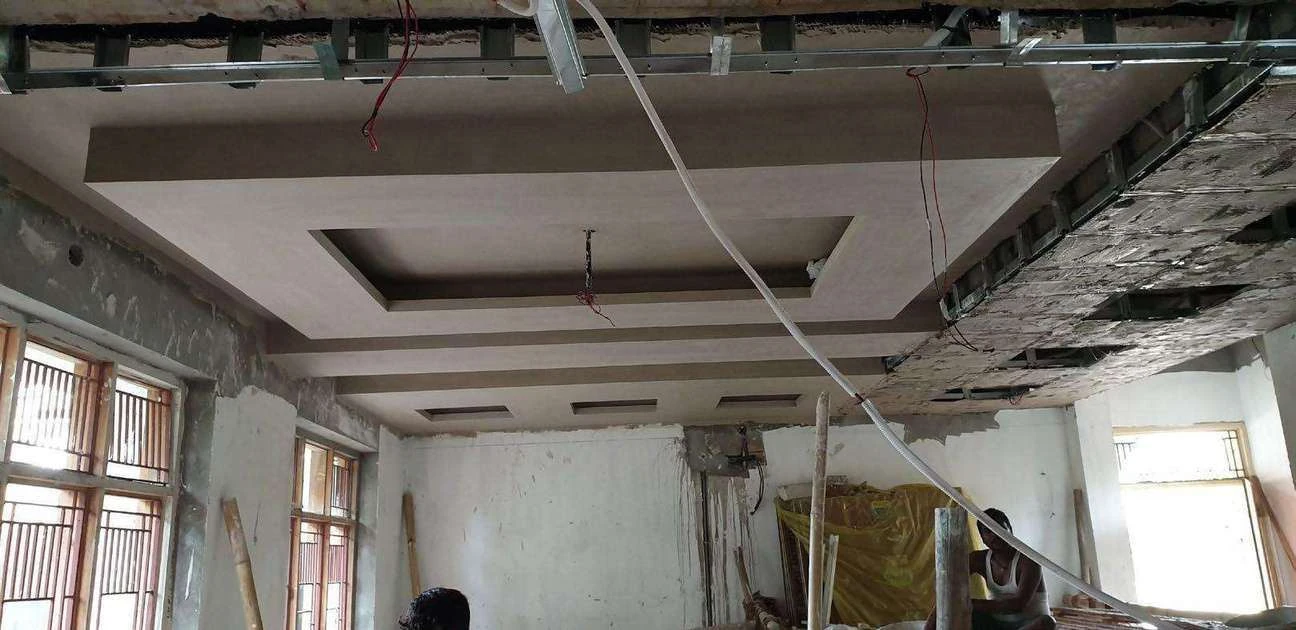

Site photograph of the home office false ceiling framework with services still exposed. — Execution — home office false ceiling

Also

Washing area of the entertainment room with a black console with brass circular pulls beneath a quatrefoil mirror. — Entertainment room — washing area

Two further bedroom interior views with circular wall recesses, a pale palette and built-in wardrobes. — Bedroom, 3D views

Drawn, then built

Scroll: the bar as it was designed dissolves into a photograph of the same bar on site, mid-installation.

The bar as designed: dark counter, red stools, backlit bottle display and rippled concentric wooden ceiling. It dissolves, on scroll, into a photograph of the same bar under construction.

DesignedBuilt

The drawing set

Plans, sections,
elevations, details.

The renders are the argument; these are the evidence. Every sheet here is one Tanveer produced — key plans, wall elevations, staircase sections, panelling build-ups and skirting junctions, dimensioned down to the millimetre. Open any of them full size.

28 technical drawings. Move across the wall, or select any sheet to enlarge.

Academic & thesis work

Before the site.

Studio and thesis projects from the Bachelor of Architecture at Gautam Buddha University, 2014 – 2019 — a campus, an urban redevelopment, an infrastructure piece and a set of smaller buildings. Kept here as they were drawn.

IIM Amritsar

Thesis · Institutional campus

The campus expressed something about the quality of its academic life, and its role as a citizen of the community in which it is located — home, museum, place of employment, social centre, park, and forum. All these functions had to be designed not for today but for the future.

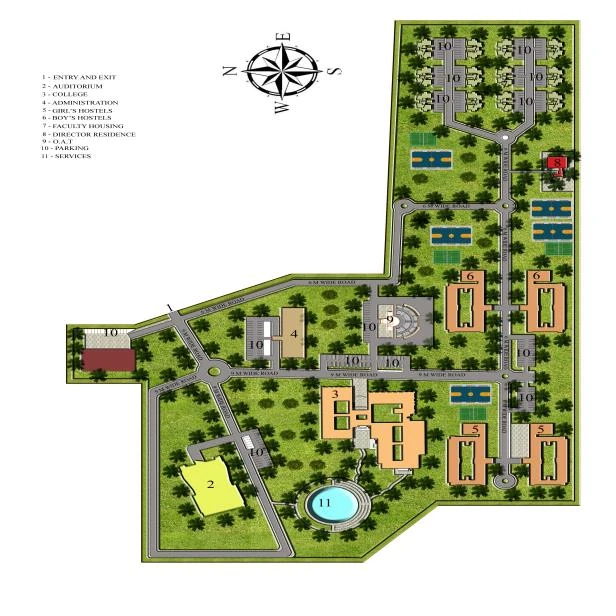

Coloured campus site plan for IIM Amritsar with a numbered legend, north point, academic blocks, hostels and a water body. — Campus site plan

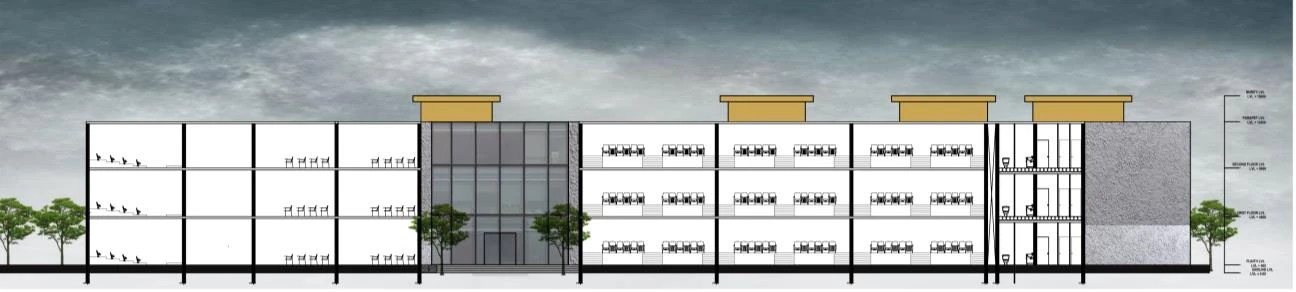

Long elevation of the college building with a glazed entrance bay and yellow canopies. — College elevation

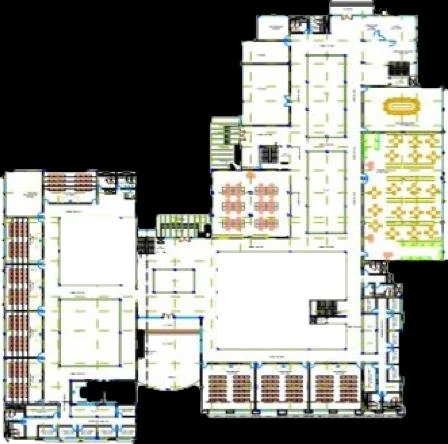

Ground floor plan of the college with main entrance, exit, service entry and fire exit marked. — College — ground floor plan

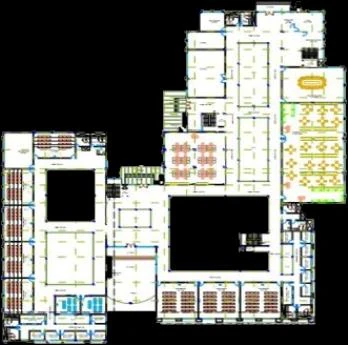

First floor plan of the college block. — College — first floor plan

Ground floor plan of the auditorium with raked seating laid out in arcs and side aisles. — Auditorium — ground floor plan

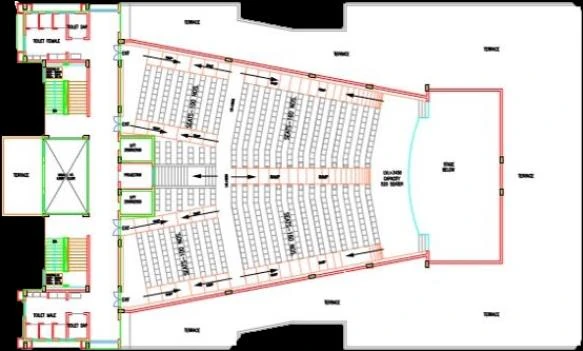

First floor plan of the auditorium showing the balcony seating tiers. — Auditorium — first floor plan

Three-dimensional view of the hostel block in red brick with recessed balconies. — Hostel — 3D view

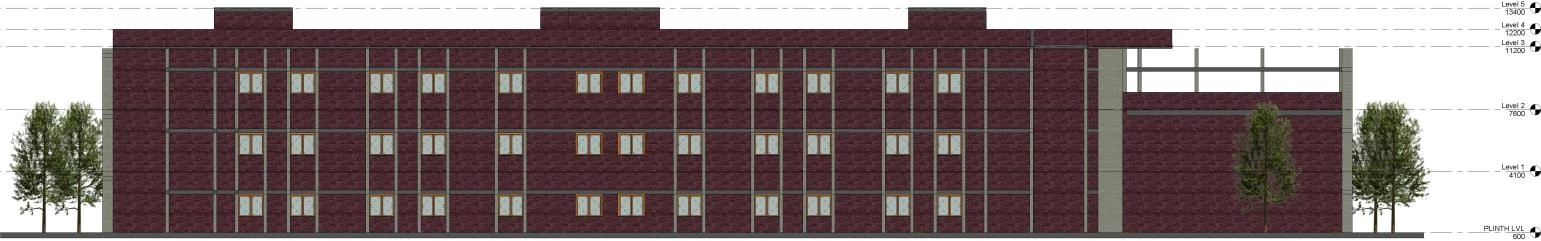

North elevation of the hostel block, four storeys, drawn with trees for scale. — Hostel — north elevation

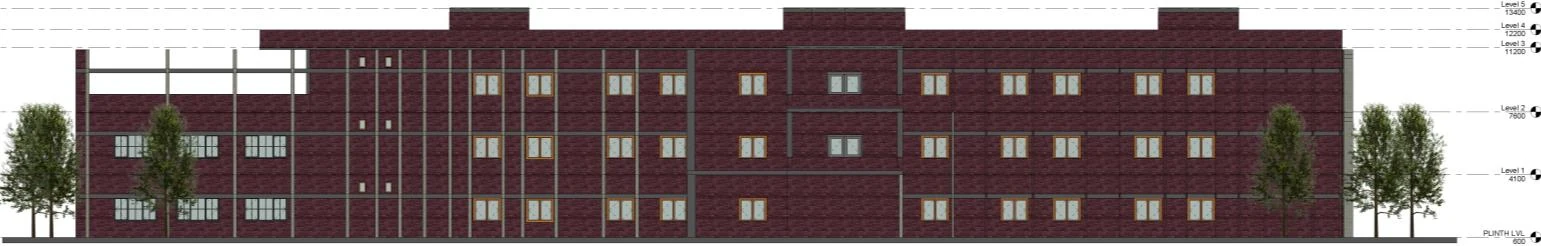

South elevation of the hostel block, four storeys with a projecting stair core. — Hostel — south elevation

Redevelopment of Nehru Place

Urban design

Three problems identified on site drove the scheme: parking, no defined entrance or exit, and circulation. The proposal answers them with a cubist build-form that keeps the hierarchy of the existing site, and rainwater harvesting — one rainfall on one acre generates 27,000 gallons.

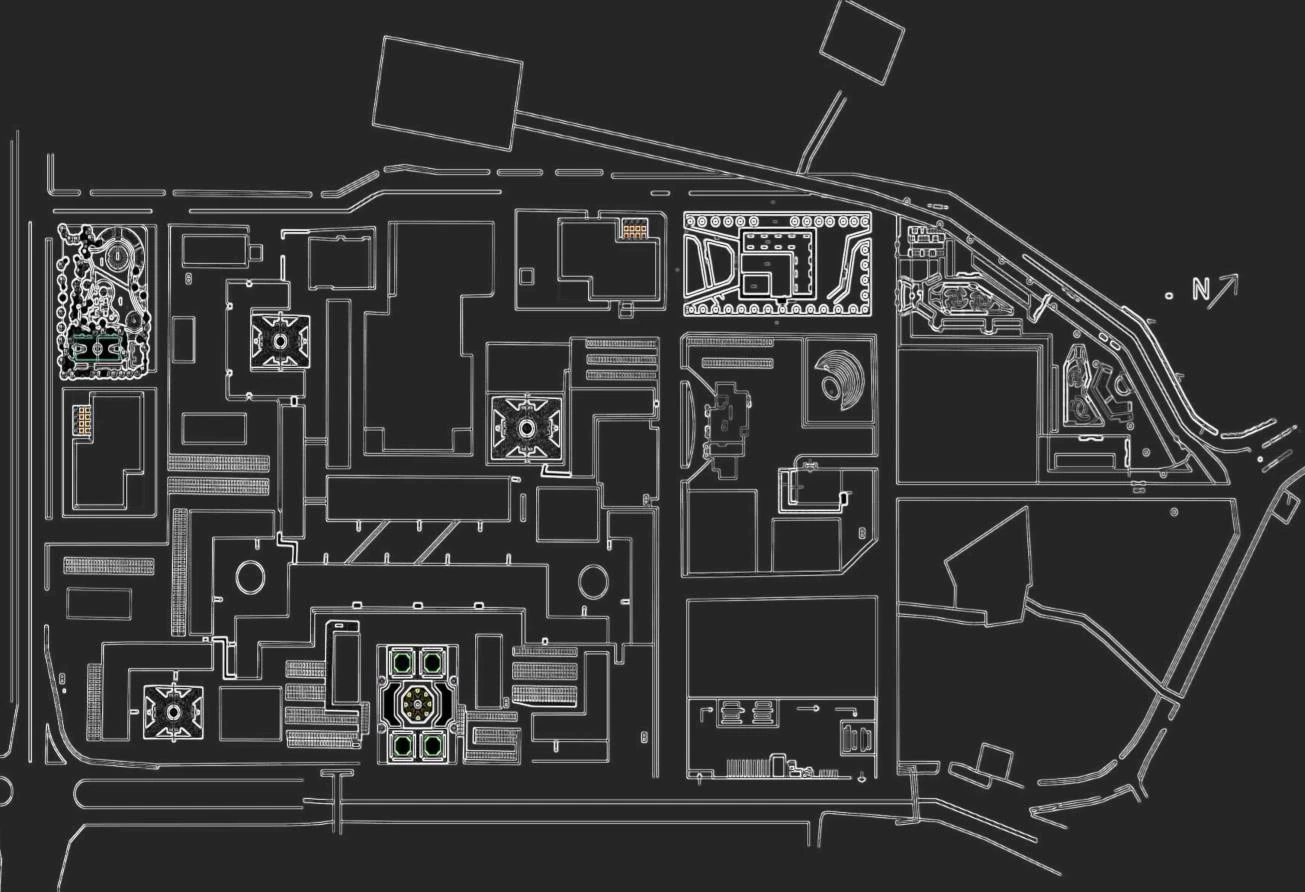

Proposed master plan of Nehru Place drawn in white line on black, with the surrounding road network and a highlighted intervention zone. — Proposed master plan

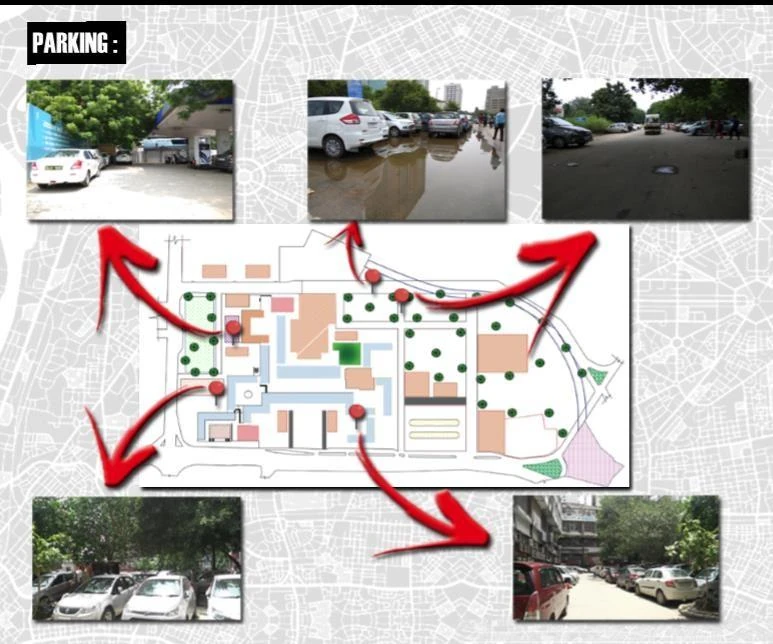

Parking analysis diagram: site plan with red arrows radiating out to photographs of cars parked across the existing precinct. — Problem — parking

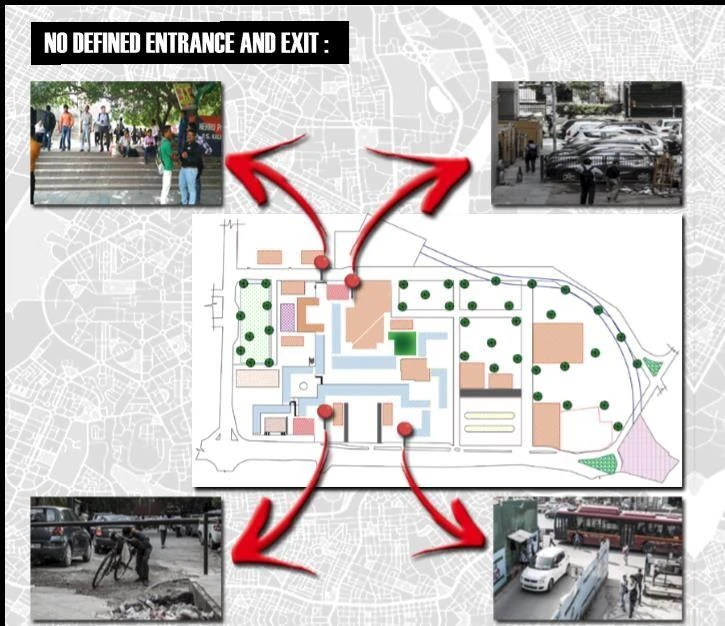

Entrance and exit analysis diagram with red arrows linking the site plan to photographs of undefined entry points. — Problem — no defined entrance or exit

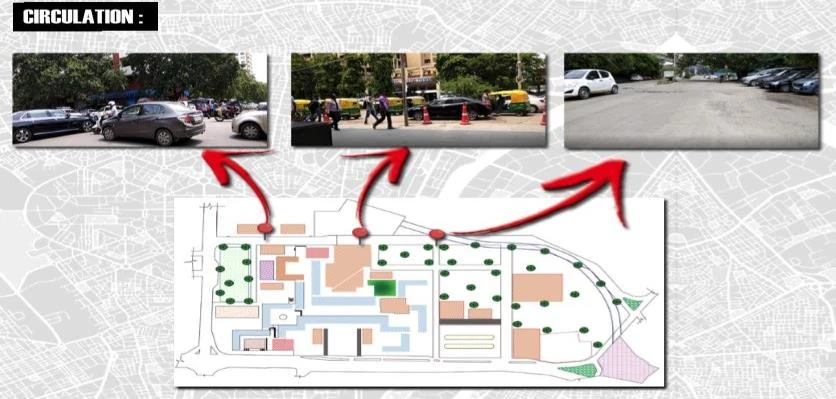

Circulation analysis diagram with red arrows from the site plan to photographs of congested streets. — Problem — circulation

Hand-hatched axonometric sketch of stacked cubic volumes illustrating the cubism concept. — Concept — cubism

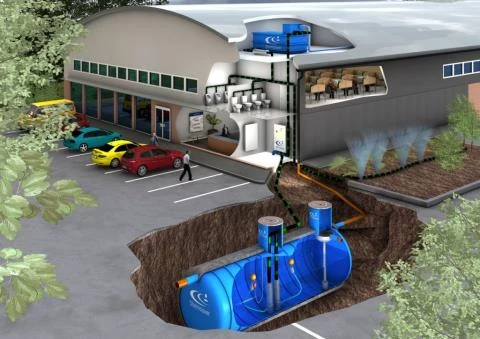

Cutaway diagram of the rainwater harvesting system with buried storage tanks beneath the landscaped forecourt. — Technology — rainwater harvesting

Aerial view of the proposed plan showing a stepped plaza between coloured commercial blocks. — View of the proposed plan

Street-level view of the proposal with the elevated frontage alongside moving traffic. — Street view

Multi Level Car Parking

Infrastructure

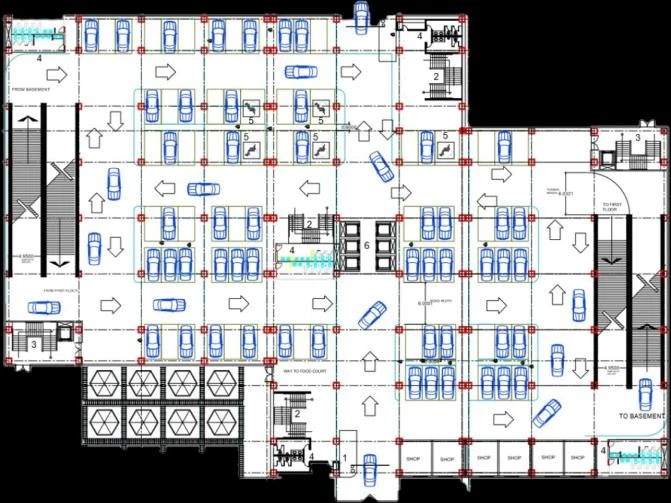

Ground floor parking plan with bays, directional arrows and circulation cores. — Ground floor plan

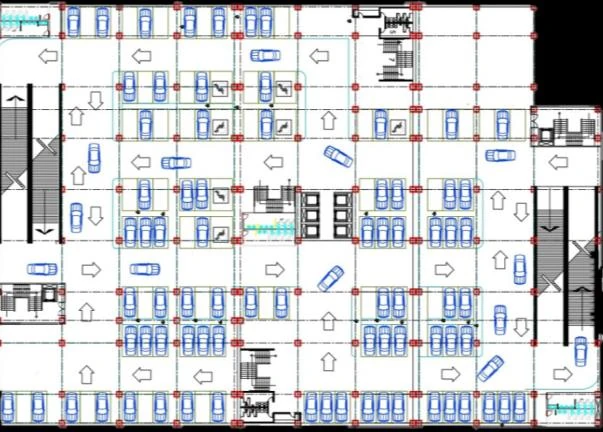

First floor parking plan with bays and one-way circulation marked. — First floor plan

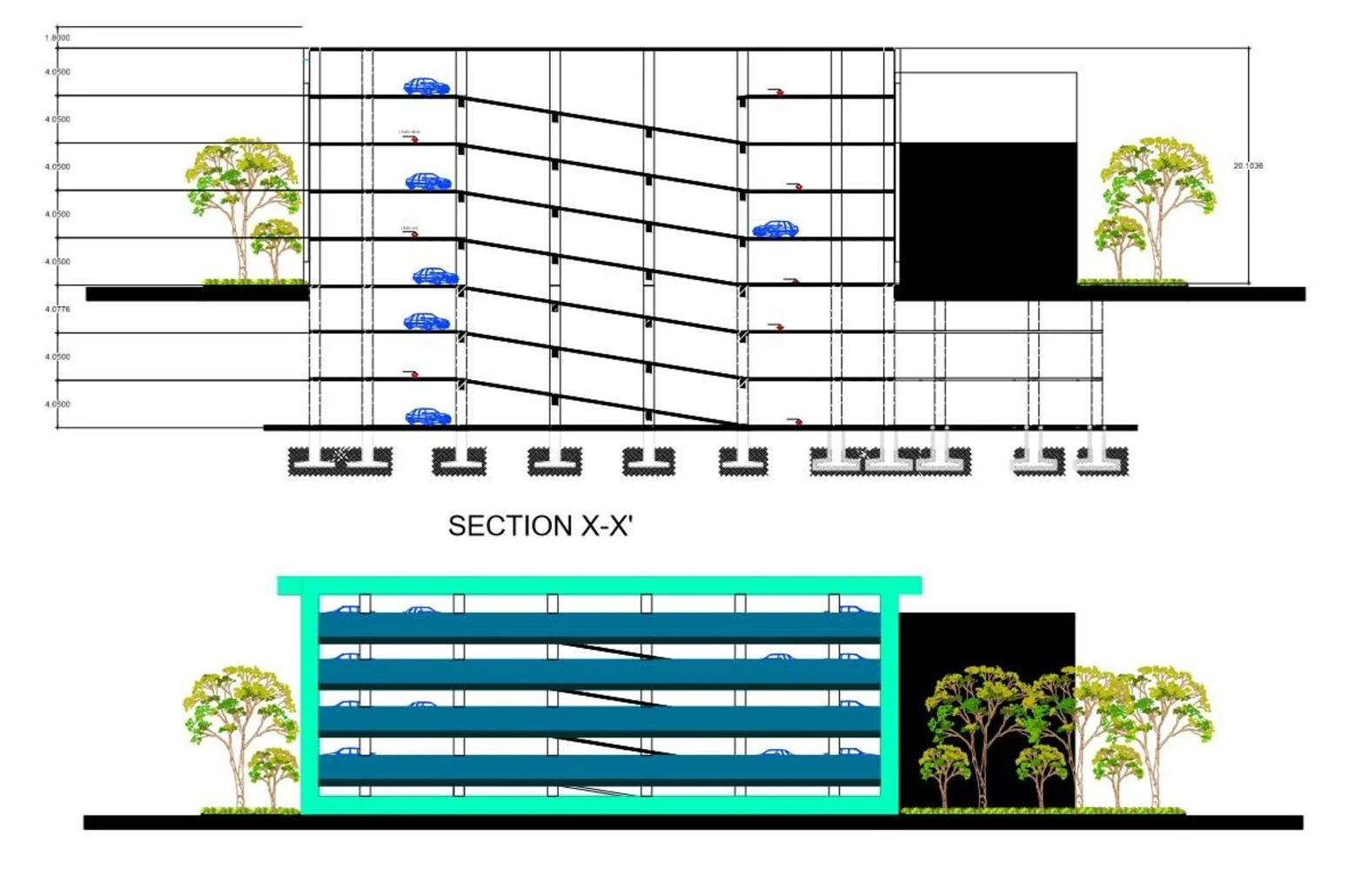

Interior view of the parking deck with columns, hazard-striped kerbs and parked cars. — Interior view

Cottage

Residential · Site area 1,550 sq.m

Proper division of a space is the major requirement of a design. Space articulation is the major concept of my design.

Cottage entrance view with a brick volume under a flat canopy, beside the coloured site plan. — Entrance view & site plan

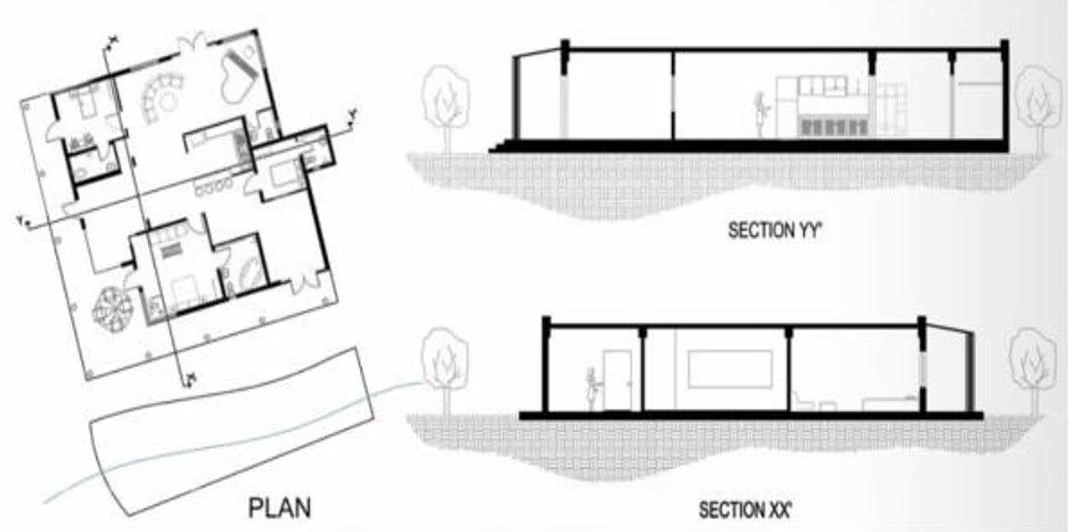

Cottage floor plan with sections YY and XX drawn beneath it. — Plan & sections

Health Resort

Hospitality

Facilities: parking, multicuisine restaurant, deluxe and semi-deluxe suites, open air theatre, spa, meditation centre, herbal medication, swimming pool and acupuncture.

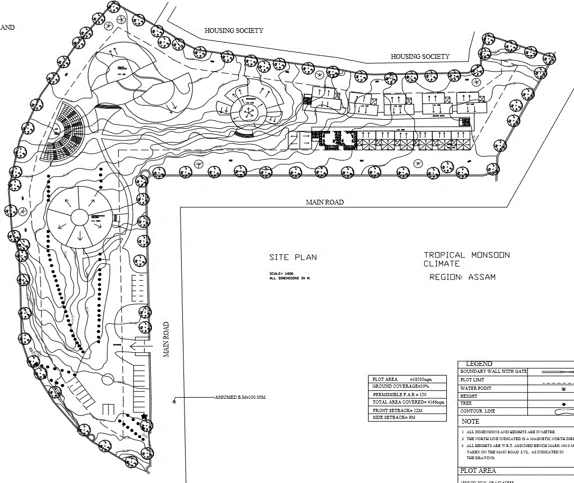

Health resort site plan with curved accommodation wings threaded through landscape. — Site plan

Office Interior

Interior design

The design of the office is based on contemporary as well as traditional architecture. It helps people communicate to the outer world, which makes it efficient and soothing. Exposed brick work is used in the design.

Office interior with an exposed brick wall, timber screen and glazed partition to a meeting area. — Exposed brick work

Open-plan office workstations with a long shared desk and glazed cabin behind. — Workstations

Lobby interior with a framed timber portal, marble floor and a mirrored vanity beyond. — Lobby

Bedroom interior with a patterned false ceiling and a fitted wardrobe run. — Bedroom

Internship work

Apex Design, Sarai Julena · 2018

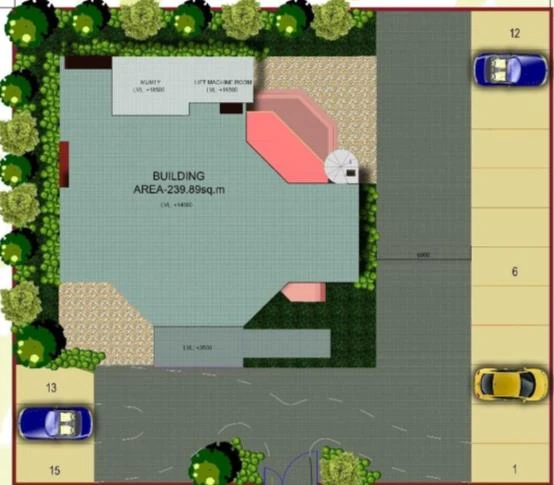

Community centre site plan with the building footprint, parking bays and planting. — Community centre — site plan

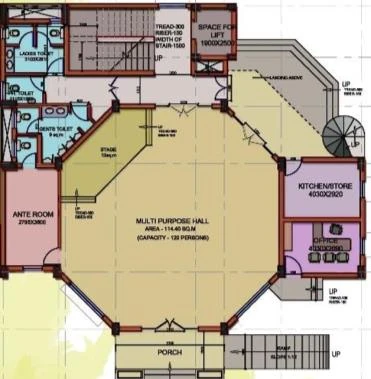

Ground floor plan of the community centre with an octagonal multipurpose hall, ante room and kitchen store. — Ground floor plan

Office building ground floor plan with a gridded structural layout and service cores. — Office — ground floor plan

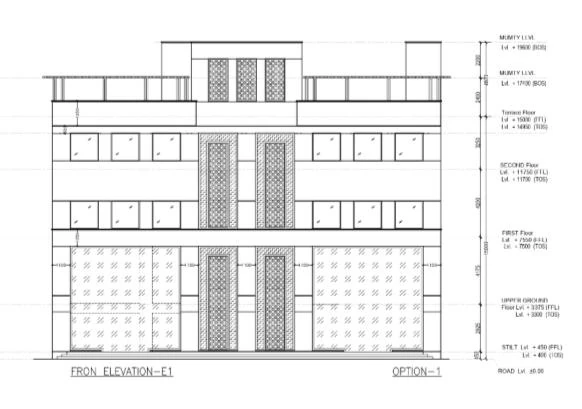

Front elevation E1 of the office building with floor levels annotated. — Front elevation

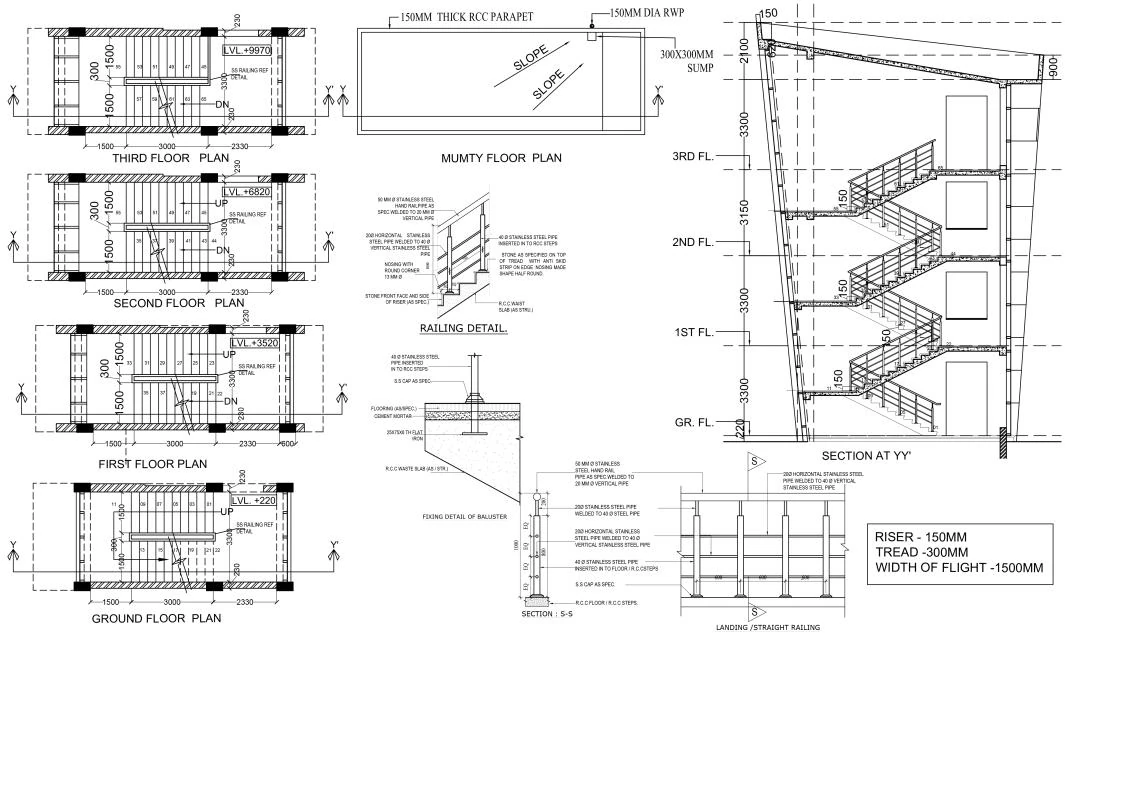

Staircase details: ground to third floor plans, mumty floor plan, railing detail and section, with riser 150 mm and tread 300 mm noted. — Staircase details

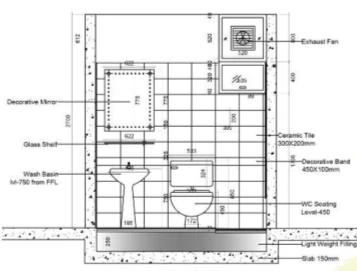

Toilet detail with decorative mirror, glass shelf, wash basin at 750 mm from finished floor level and ceramic tile sizes. — Toilet detail

Visualisation studies

Rendered four-storey commercial block with a blue glazed curtain wall and cantilevered balconies.

Rendered institutional block in pale stone with green glazing, seen from above with cars in the forecourt.

Rendered institutional building with a repeating window grid and a glazed double-height ground floor.

Rendered commercial frontage with horizontal timber louvres over a planted entrance terrace.

Rendered residential elevation with interlocking orange and grey panels framed by trees.

Rendered three-storey house with a projecting pergola, stone base and car port.

Rendered narrow apartment block with stacked planted balconies.

Photography

Photograph of a landscaped courtyard between long colonnaded wings at dusk.

Black and white photograph of a concrete atrium frame with skylights overhead.

Photograph of a perforated screen colonnade backlit by a low orange sun.

Profile

From conceptto the scaffolding.

Architectural Designer and Architectural Engineer with 6+ years of experience delivering residential, commercial, large-scale and healthcare projects.

Expert in AutoCAD, Revit, BOQ, site handling, technical support on site and construction documentation preparation, with strong capability in shop drawings and authority compliance.

A proven track record of producing accurate, buildable drawings and coordinating with multidisciplinary teams to meet project deadlines and quality standards.

Location: Riyadh, Saudi Arabia
Status: Transferable Iqama
Languages: English · Hindi · Urdu

Experience

Apr 2026Present
Al Yamama Company
Civil Site Supervisor — KAFD Project
Riyadh, Saudi Arabia
Supervising civil and architectural works at KAFD: site supervision, team coordination, quality control and drawing execution to project standards and safety requirements.
- Supervising daily civil and architectural site activities
- Guiding workers and subcontractors according to drawings and specifications
- Inspecting block work, plaster, tiles, gypsum, concrete and finishing works
- Monitoring site progress and reporting to the engineer or project manager
- Coordinating material requirements and deliveries
- Resolving site issues and preventing rework
- Coordinating with MEP and architectural teams
- Maintaining compliance with KAFD standards and consultant requirements
- Preparing daily reports, inspection requests and work status updates
Oct 2019Feb 2024
HIS Interior & Construction Enterprises LLP
Architect Designer / Site Engineer
New Delhi, India
Architectural design and engineering across residential, commercial and interior fit-out projects — concept and schematic design through design development, construction documentation and on-site technical support.
- Prepared IFC, working and detailed construction drawings for residential projects
- Produced shop drawings and as-built documentation based on site conditions
- Reviewed drawings for constructability, accuracy and code compliance
- Coordinated with consultants, contractors and vendors for technical approvals
- Supported site teams with revisions, RFIs and technical clarifications
- Prepared BOQ documents
- Assisted senior architects and project managers in design development
Jul 2018Dec 2018
USS Consultant Pvt Ltd
Trainee Architect
Noida, India
- Preparation of working drawings — architecture, interior and landscape
- Coordination and monitoring of on-site construction work

Core skills

Architectural Design & Planning

Creating building concepts, layouts and design strategies that meet client needs and regulations.

Construction Drawings & Documentation

Preparing detailed technical drawings and documents required for construction execution.

Shop Drawings & As-Built Drawings

Producing fabrication drawings and final site drawings reflecting actual completed work.

MEP & Multidisciplinary Coordination

Aligning mechanical, electrical, plumbing and other disciplines to avoid design conflicts.

Site Handling

Managing and supervising all on-site activities to ensure smooth, safe and timely project execution.

Site Coordination & Technical Support

Assisting site teams with technical guidance and resolving on-site issues.

BOQ & Documents

A complete record of project materials, quantities, cost estimates and supporting technical documentation.

Software

AutoCADAdvanced
Revit ArchitectureAdvanced
SketchUpAdvanced
LumionAdvanced
V-RayAdvanced
Photoshop
MS OfficeReports, BOQs, Documentation

Documentation produced

IFC Drawings
Working Drawings
Shop Drawings
As-Built Drawings
Finishes Schedules
Material Submittals
Technical Specifications
Space Planning
Site Planning
Concept Development

Education

Bachelor of Architecture

Gautam Buddha University — Greater Noida, India

2014 – 2019

Event OrganiserEDF 2017, architectural fest
IGBC Student CoordinatorIGBC Western UP chapter — organised workshops

Contact

Available forarchitectural work.

Email: tanveeralam35@gmail.com
Telephone: +966 570 558 007
Location: Riyadh, Saudi Arabia — Transferable Iqama

Documents
